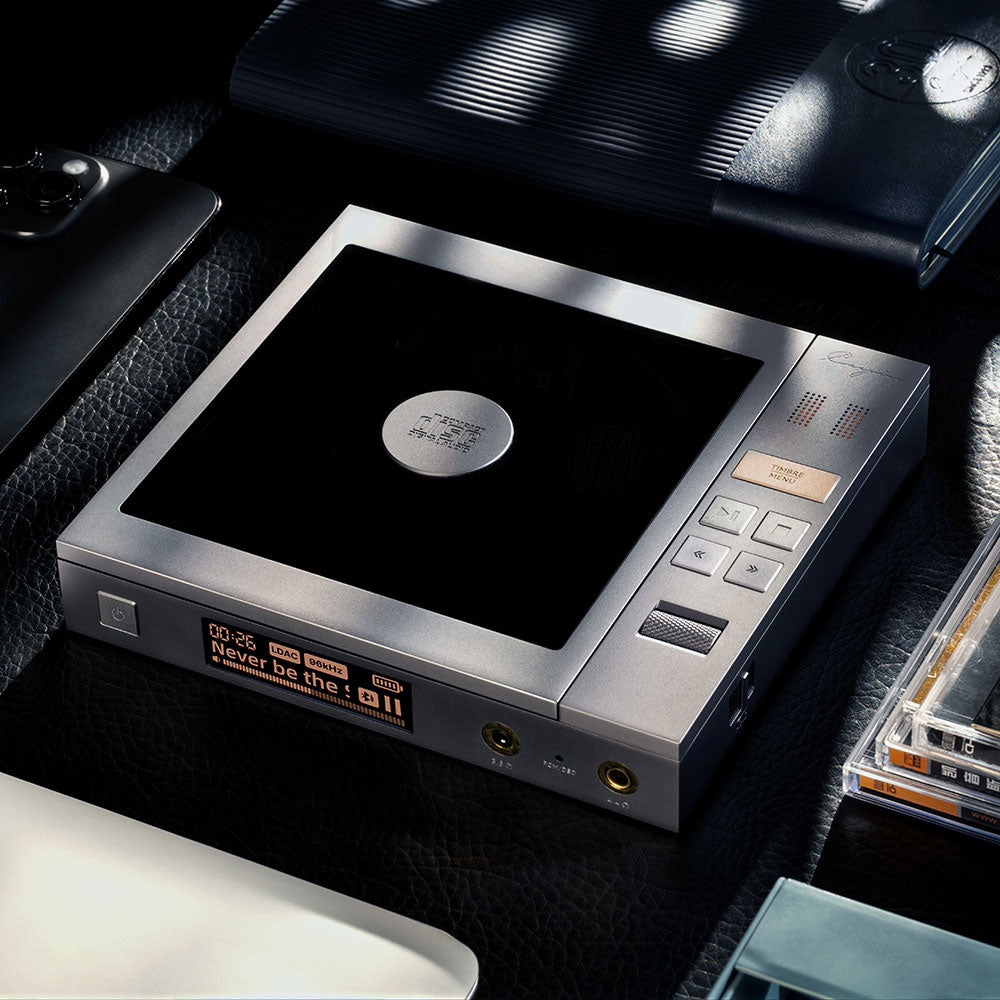

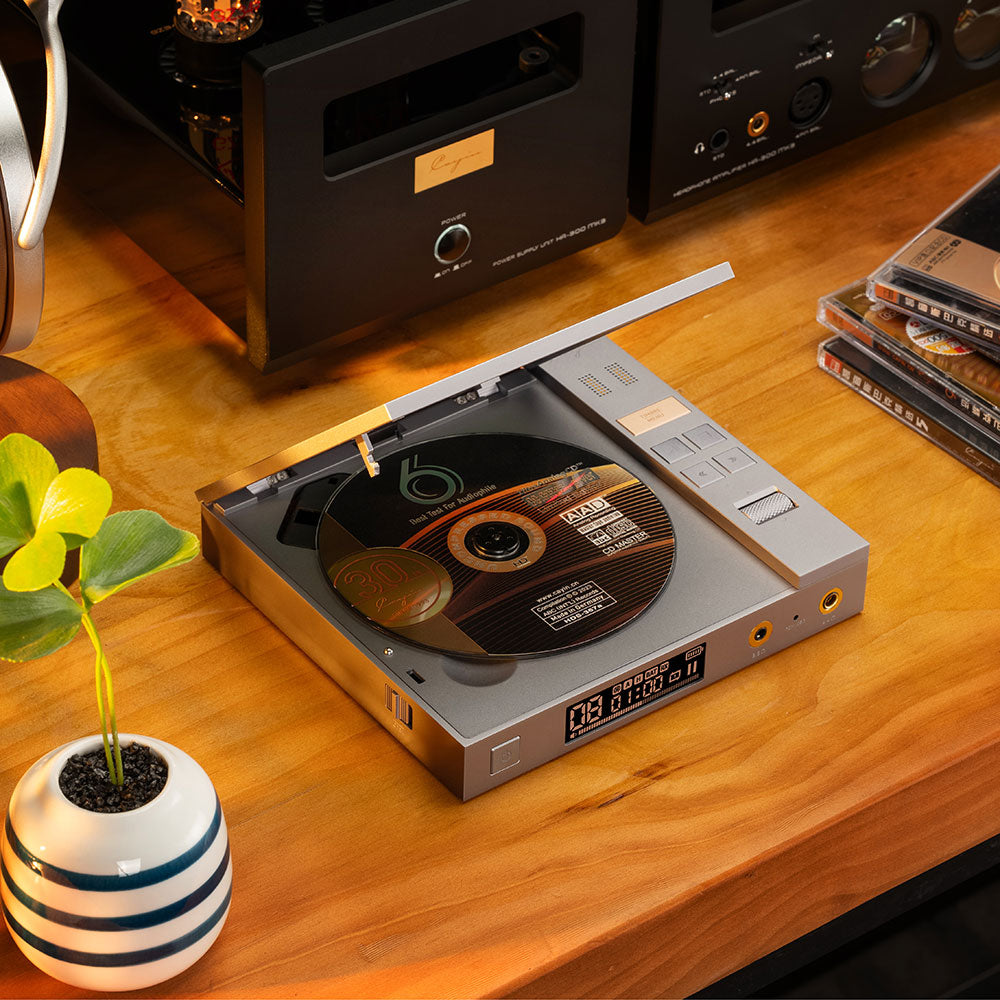

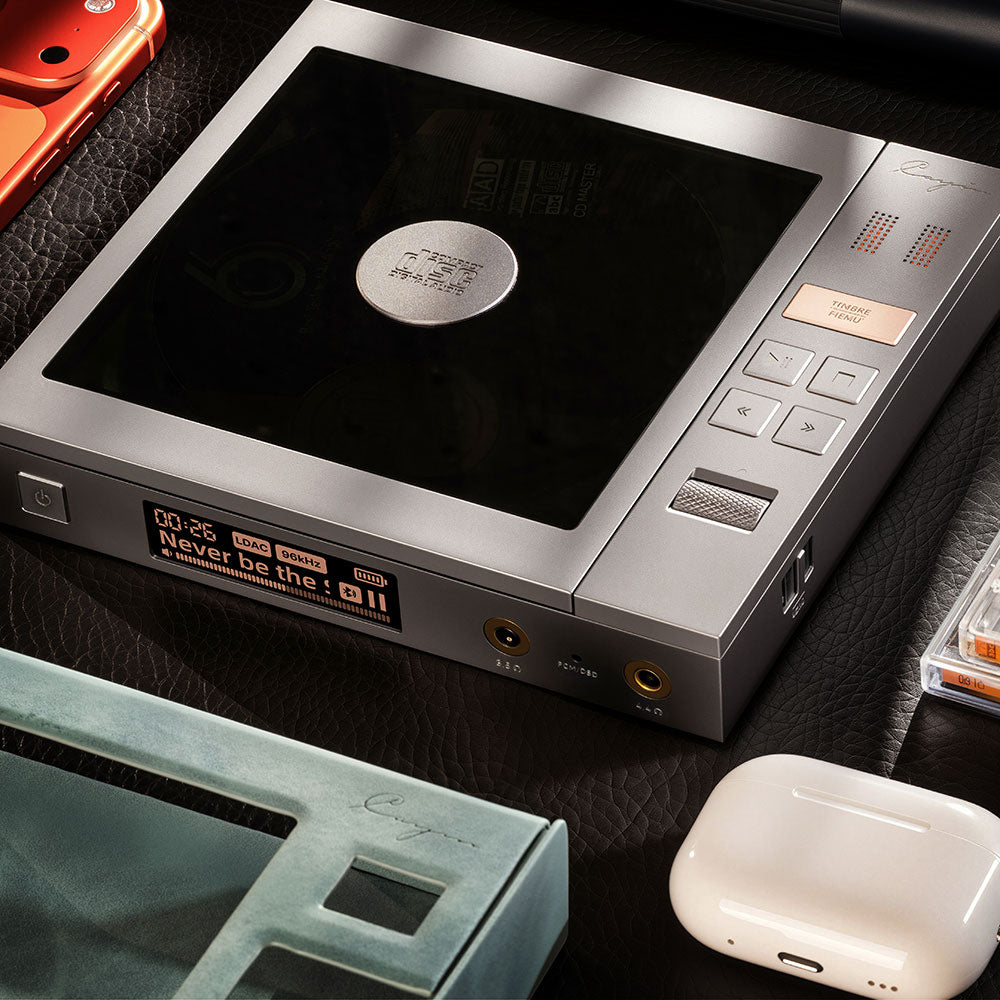

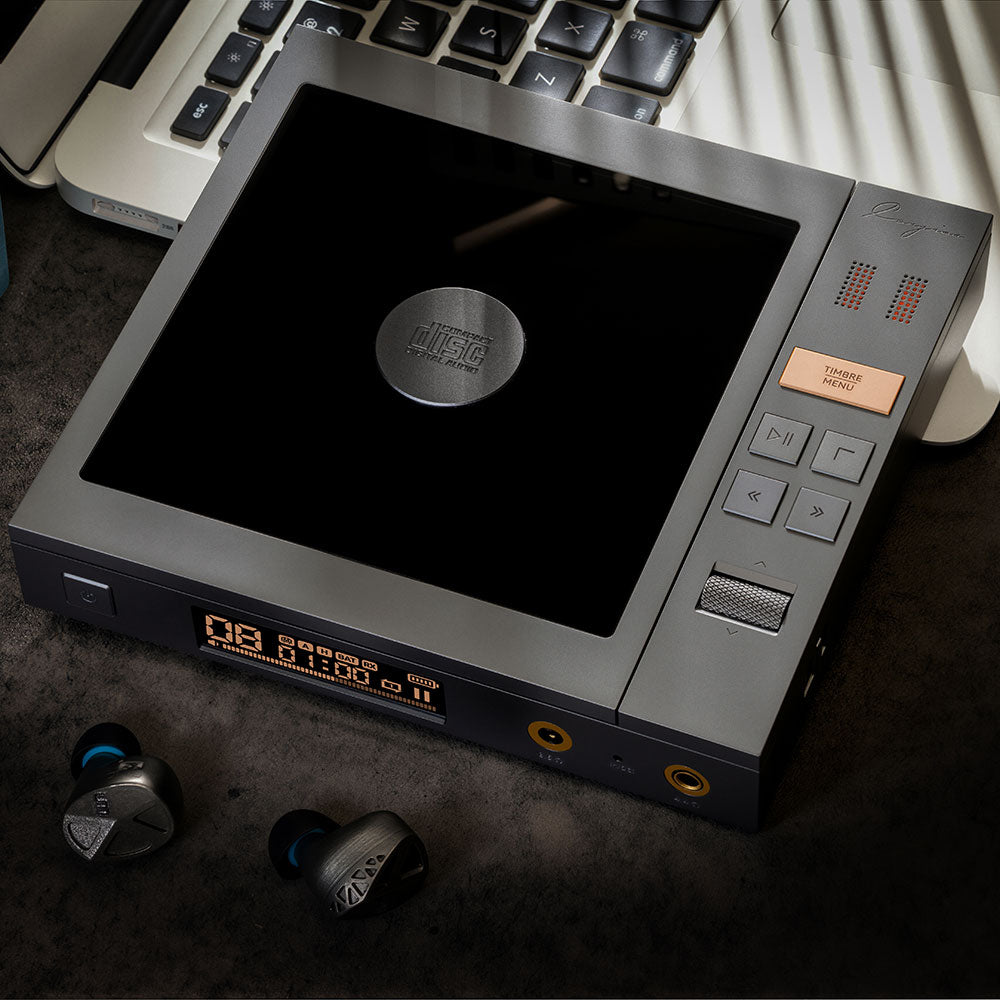

Cayin CP6 – Portable CD Player with Triple-Timbre

Since the launch of the legendary CDT-15A CD player in 2001, Cayin has been a pioneer in integrating tube and transistor dual-timbre technologies. With the CP6, Cayin brings decades of expertise to a portable chassis that combines the sonic finesse of a stationary desktop hi-fi system with true mobility. Every phase – from digital signal processing to power management – has been comprehensively optimized.

Highlights

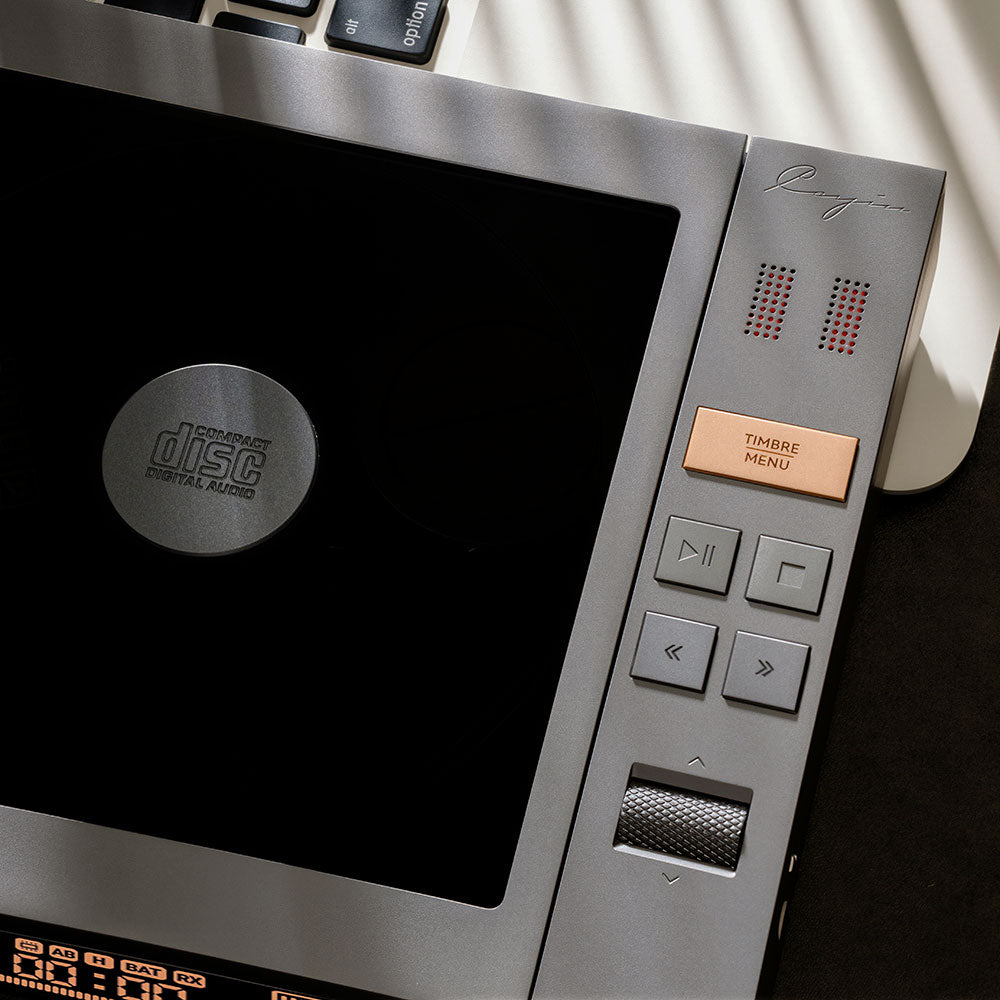

• Triple-Timbre Vacuum Tubes: Three selectable sound modes (Classic, Modern, Solid-State) for headphone (PO), line (LO), and Bluetooth outputs.

• Dual Power Supply (DC & BAT): Up to 7.5 hours of battery life and increased power of up to 1300 mW + 1300 mW (@ 16 Ω) in stationary DC power operation.

• Bidirectional Bluetooth: Flagship Qualcomm QCC3083 chipset (Bluetooth 5.4) supports high-resolution transmission and reception while maintaining tube sound modes.

• Fully discrete amplifier circuit: Fully balanced 4-channel headphone amplifier with switchable Class-A or Class-AB operation. Effortlessly drives loads from 8 Ω to 600 Ω.

• Audiophile Hardware & Ripping Function: Equipped with two Cirrus Logic CS4308P DACs, two OPA1612 operational amplifiers, and a 16-core XMOS XU316 USB platform. Also supports lossless CD ripping to USB media.

• Smart App Control: Convenient configuration via the Cayin Control App (currently only available for Android).



Technical Details & Components

Tube Architecture & Tonal Colors (Timbre)

At its core are two precisely matched tubes of the type Raytheon JAN6418 (NOS subminiature pentodes from the USA) operating in a Class-A circuit. Switch between three tonal colors at the push of a button:

• Classic Timbre: Extremely low distortion, smooth, natural, and musical; ideal for long listening sessions.

• Modern Timbre: Combines the dynamics of a pentode with the low distortion of a triode; offers a wide soundstage and tight bass. Ideal for orchestral and electronic music.

• SS (solid-state) timbre: Clean, transparent, fast, and highly precise.

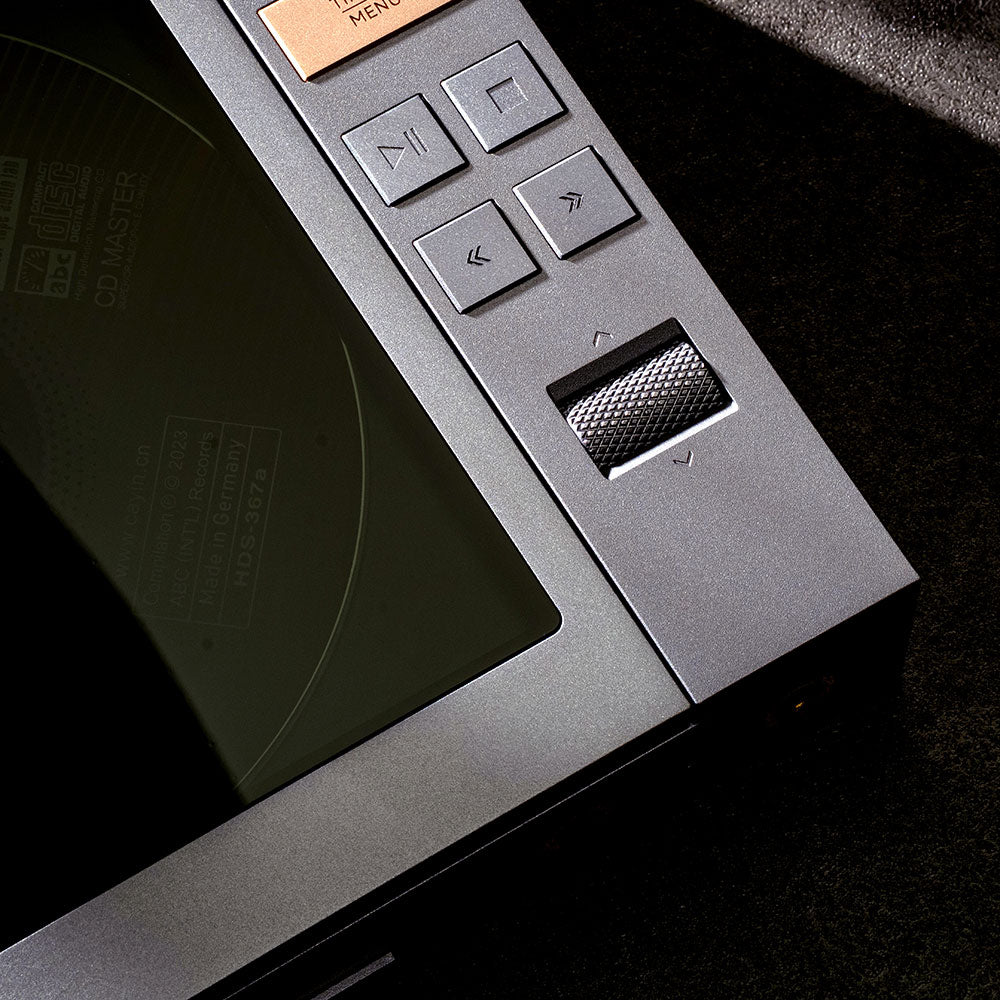

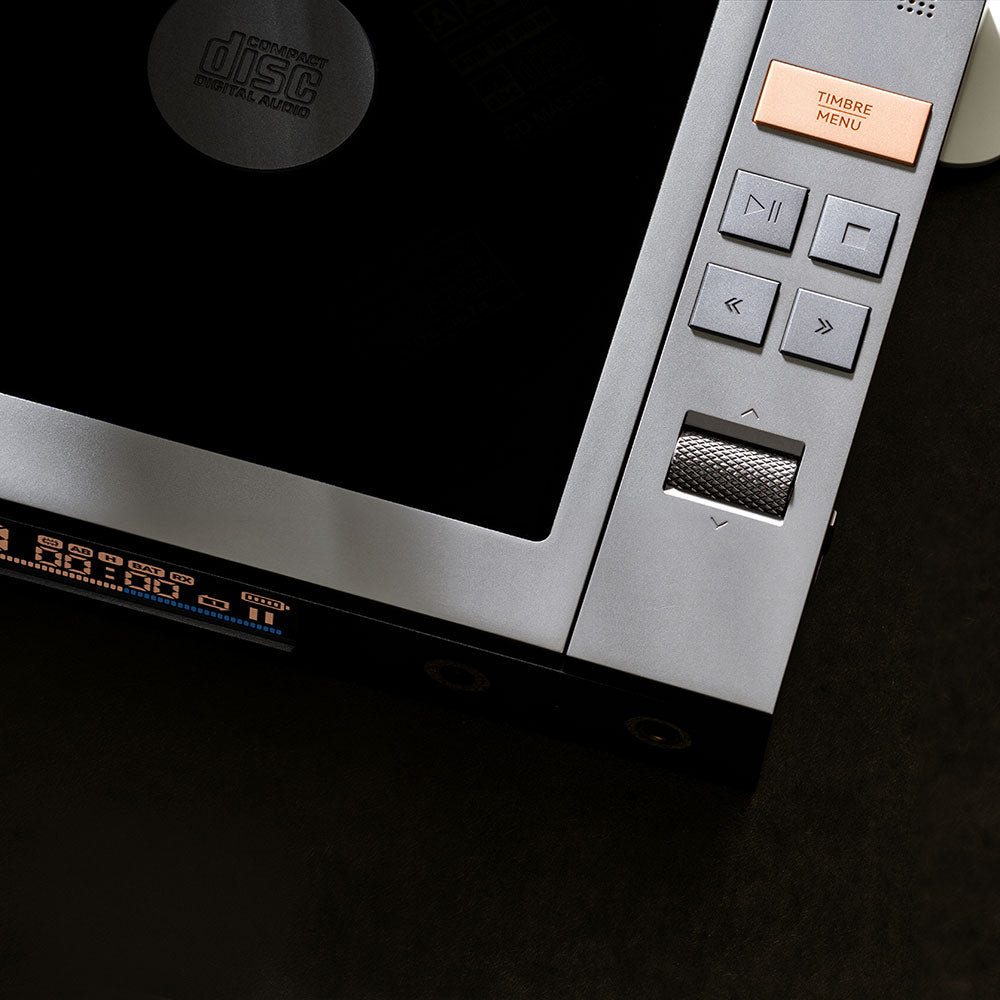

Housing design & anti-shock mechanism

• Material: Precision-milled 6063 aerospace aluminum with fine sandblasting (180 grit) in matte iron gray.

• Anti-shock: A mechanical damping (protective sleeve, shielding, and suspended chassis) effectively protects the tubes from microphony effects and external vibrations.

• Safety: Viewing window made of green filter glass to protect against laser radiation (certified as Class 1 laser product).

Power values & battery life

Battery life (test conditions: CD playback, volume 30, low gain)

• Charging times: approx. 3.5 hours via standard charger; approx. 2.5 hours via fast charger (QC3.0 / PD2.0).

Output power (high gain, 1 kHz, THD+N $\le$ 0.5%)

• 3.5 mm PO (single-ended):

  • @ 32 Ω: 330 mW + 330 mW (battery) / 420 mW + 420 mW (DC)

  • @ 16 Ω: 500 mW + 500 mW (battery) / 600 mW + 600 mW (DC)

• 4.4 mm PO (balanced):

  • @ 32 Ω: 900 mW + 900 mW (battery) / 1100 mW + 1100 mW (DC)

  • @ 16 Ω: 1100 mW + 1100 mW (battery) / 1300 mW + 1300 mW (DC)

Connectivity & formats

• Inputs: CD (drive), USB audio, Bluetooth

• Headphone outputs: 3.5 mm unbalanced jack, 4.4 mm balanced jack

• Line-out (LO): 3.5 mm unbalanced, 4.4 mm balanced

• Digital outputs: Coaxial & optical (S/PDIF combined in 3.5 mm port)

• Supported Bluetooth codecs:

  • Reception (Rx): LDAC, aptX Adaptive, aptX HD, aptX, AAC, SBC

  • Transmission (Tx): aptX Adaptive, aptX HD, aptX, SBC

• USB audio formats (UAC2.0): PCM 16–32 bit (44.1–384 kHz), native DSD64–256, DoP64–256.

Physical specifications

• Display: 2.3-inch HD color display ($76 \times 284$ Pixels)

• Battery: 7300 mAh / 28 Wh lithium-polymer battery (or 7500 mAh declared elsewhere )

• Dimensions: 167 $\times$ 151 $\times$ 29 mm

• Weight: approx. 720 g
