Lieferzeit ca. 2 Wochen.

Lieferumfang: 2 Stück (Matched Pair)

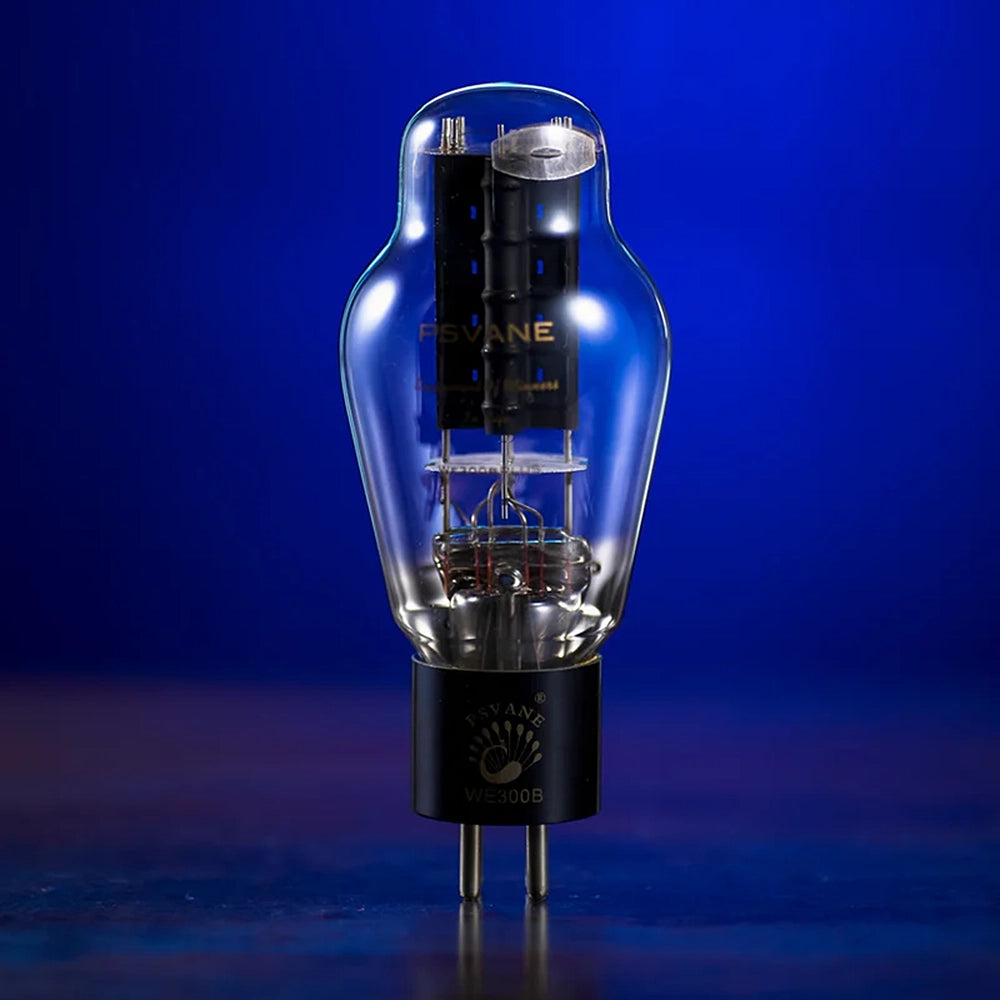

PSVANE WE Series WE300B Plus

Filament Voltage & Current:

• Filament Voltage (Uf): 5V

• Filament Current (If): 1.2A

Maximum Ratings:

• Maximum Anode Voltage (Ua): 480V

• Maximum Anode Dissipation Power: 40W

Cathode Current:

• Self-Bias: 100mA

• Fixed Bias: 70mA

Interelectrode Capacitance:

• Input Capacitance: 9pF

• Output Capacitance: 4.3pF

• Grid-to-Plate Capacitance: 15pF

Static Parameters:

• Anode Voltage (Ua): 300V

• Grid Voltage (Ug): -60V

• Anode Current (Ia): 60mA

• Transconductance (Gm): 5.5mA/V

• Internal Resistance (Ri): 0.7kΩ

• Amplification Factor (μ): 3.85

• Output Power (Pout): 6.6W
